A 0.6/1kV XLPE insulated power cable for indoor, trench, duct, tunnel and direct-buried low-voltage power transmission.
Designed for electrical distribution systems that require stable operation, clear circuit protection, and practical installation for industrial, commercial, utility, and infrastructure projects.
Dongfang Electric Power (Shandong) Co., Ltd. supports product selection by voltage level, rated current, installation environment, cabinet structure, cable connection method, and project documentation needs.
Low Voltage Power Cable
0.6/1kV XLPE Insulated Power Cable
XLPE insulated power cable not only provides excellent electrical performance, mechanical performance, heat-aging resistance, environmental stress resistance and chemical corrosion resistance, but also has a simple structure and convenient use. It is not limited by laying elevation difference, supports long-term operating temperature of 90C, and offers high transmission capacity. XLPE insulated power cable products include flame-retardant and non-flame-retardant full series XLPE insulated power cables.
Application Scope
| System | Scenario | Example 1 | Example 2 |
|---|---|---|---|
| This product is suitable for AC 50Hz lines with rated voltage of 0.6/1kV, where the maximum system voltage is 1.2kV, for transmitting electric energy. | It can be laid indoors, in cable trenches, cable ducts, pipelines and direct-buried routes in industries such as metallurgy, electric power and construction, for fixed-use applications that do not bear mechanical external force. | YJV XLPE insulated PVC sheathed power cable can be laid indoors, in tunnels, cable trenches and pipelines. It may also be buried in loose soil, and the cable can withstand a certain pulling force. | YJV22 XLPE insulated steel tape armored PVC sheathed power cable can be laid indoors, in tunnels, cable trenches and underground direct-buried routes. The cable can withstand mechanical external force, but cannot withstand large pressure. |
Operating Features
| Feature 1 | The power-frequency AC rated voltage is 0.6/1kV, and the maximum voltage of the AC system shall not exceed 1.2kV. |
|---|---|
| Feature 2 | The maximum long-term permissible operating temperature of the cable conductor is 90C. During short circuit, the maximum conductor temperature is 250C, with duration not exceeding 5 seconds. |
| Feature 3 | The minimum ambient temperature for cable operation is -10C. |
| Feature 4 | During laying and installation, the temperature shall not be lower than 0C. |
| Feature 5 | Recommended minimum bending radius: the recommended minimum bending radius is 20D for single-core cable and 15D for multi-core cable. |
Products are selected for reliable distribution, protection, switching, and control in practical power systems.
Equipment can be matched to voltage level, capacity, cabinet structure, cable entry, and installation environment.
Technical documents, drawings, labels, packing, and delivery requirements can be coordinated for project use.

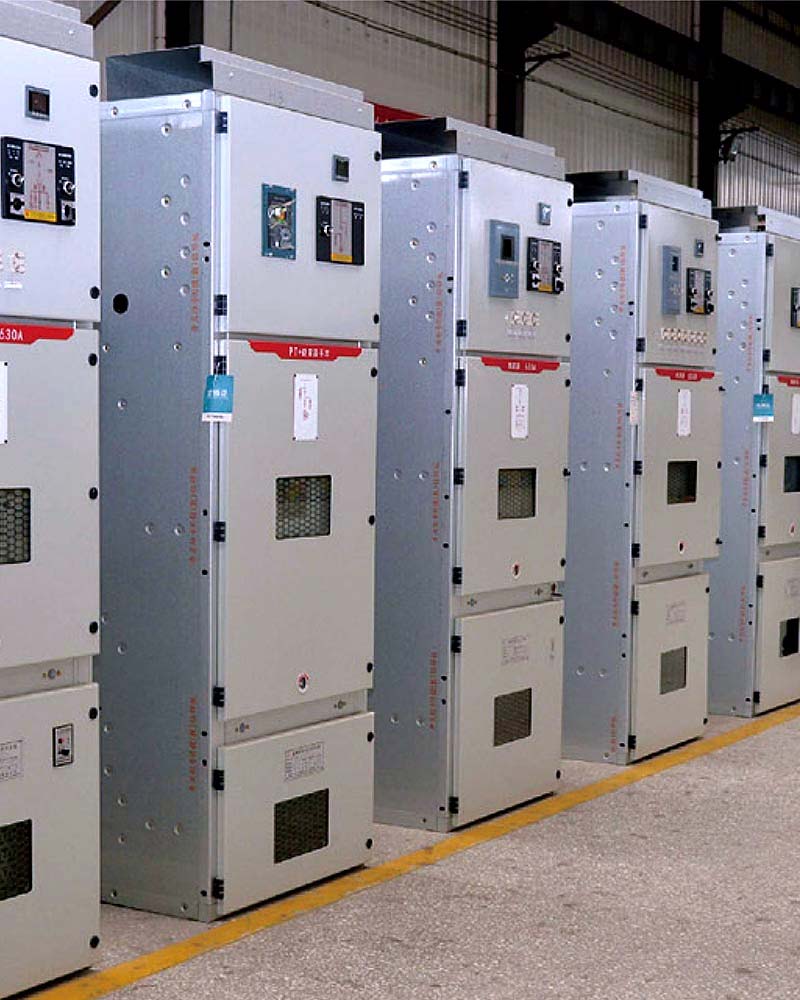

Dongfang Electric Power (Shandong) Co., Ltd. focuses on project-oriented power distribution equipment, including distribution boxes, distribution cabinets, withdrawable switchgear, ring main units, cable branch boxes, compensation cabinets, metering systems, busway systems, and power cables.
Review product models based on voltage, capacity, feeder quantity, and installation environment.
Coordinate drawings, technical parameters, labels, packing details, and handover documents.
Tell us the product name, voltage level, load capacity, quantity, installation site, and delivery requirements. Our team will help check the suitable product configuration.
