An outdoor multifunctional integrated distribution cabinet for metering, outgoing circuits and reactive power compensation.
Designed for electrical distribution systems that require stable operation, clear circuit protection, and practical installation for industrial, commercial, utility, and infrastructure projects.
Dongfang Electric Power (Shandong) Co., Ltd. supports product selection by voltage level, rated current, installation environment, cabinet structure, cable connection method, and project documentation needs.

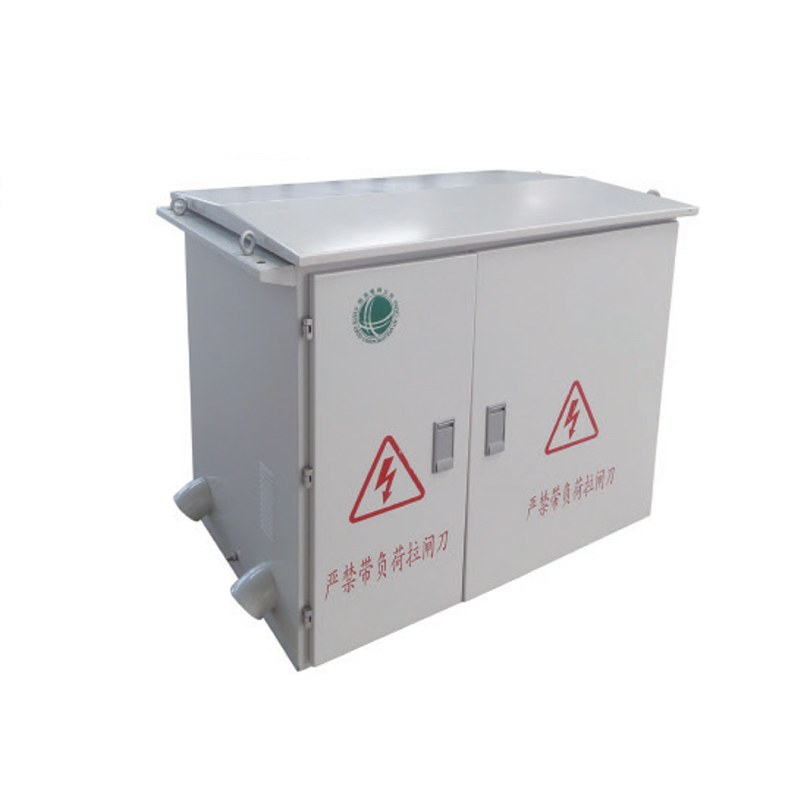

JP Series Outdoor Multifunctional Integrated Power Distribution Cabinet
Application Scope
The JP series outdoor multifunctional integrated distribution cabinet is an outdoor integrated distribution device combining metering, outgoing circuits, reactive power compensation and other functions. It has short-circuit, overload, overvoltage and leakage protection functions. It is compact, attractive in appearance, economical and practical. It is installed on the pole of an outdoor pole-mounted transformer and is a new-generation ideal distribution product for urban and rural power grid reconstruction.
Model Meaning
| JP | Box-type metering distribution device |
|---|---|
| Transformer Capacity | Transformer capacity code |
| Outgoing Circuits | Number of outgoing circuits |
Use Environment Conditions
Main Technical Parameters
| No. | Name | Unit | Parameter |
|---|---|---|---|
| 1 | Transformer Capacity | kVA | 30 to 400 |
| 2 | Rated Operating Voltage | V | AC400 |
| 3 | Auxiliary Circuit Operating Voltage | V | AC220, AC380 |
| 4 | Rated Frequency | Hz | 50 |
| 5 | Rated Current | A | Not more than 630 |
| 6 | Rated Leakage Operating Current | A | 30 to 300, adjustable |
| 7 | Protection Grade | IP44 |
Main Circuit Scheme Diagram
Knife switches or knife-fuse switches can use HD11F, HR5, HR6 and other series. Fuses can use D220, CMI, NS, C45, D247 and other series. AC contactors can use CJ20, B series, CJX2, CJ19 and other series. Zero-sequence current transformer leakage relays can use JD, LLJ and other series. Current transformers can use LM21-0.5, LMK-0.66 and other series. Surge arresters can use FYS, Y3W and other series. Capacitors can use BSMJ, BCMJ and other series. Automatic compensation controllers can use JKI, JKG and other series.
The compensation circuit can be selected from 1 to 4 circuits, and each circuit capacity can be selected from 3 to 20kvar. According to customer needs, temperature and humidity control devices can be installed in the box. The compensation circuit switching form can also be selected according to user requirements, such as contactless module switching or load-switch switching.
Cabinet Structure Diagram
The product uses a horizontal box structure. The enclosure dimensions and layout are selected according to the project configuration.
Products are selected for reliable distribution, protection, switching, and control in practical power systems.
Equipment can be matched to voltage level, capacity, cabinet structure, cable entry, and installation environment.
Technical documents, drawings, labels, packing, and delivery requirements can be coordinated for project use.
Dongfang Electric Power (Shandong) Co., Ltd. focuses on project-oriented power distribution equipment, including distribution boxes, distribution cabinets, withdrawable switchgear, ring main units, cable branch boxes, compensation cabinets, metering systems, busway systems, and power cables.
Review product models based on voltage, capacity, feeder quantity, and installation environment.
Coordinate drawings, technical parameters, labels, packing details, and handover documents.
Tell us the product name, voltage level, load capacity, quantity, installation site, and delivery requirements. Our team will help check the suitable product configuration.
